Универсальный многофункциональный дисплей CANchecked MFD32 Gen2

With the universal CANchecked MFD32 Gen2 data display, you always have all data at a glance

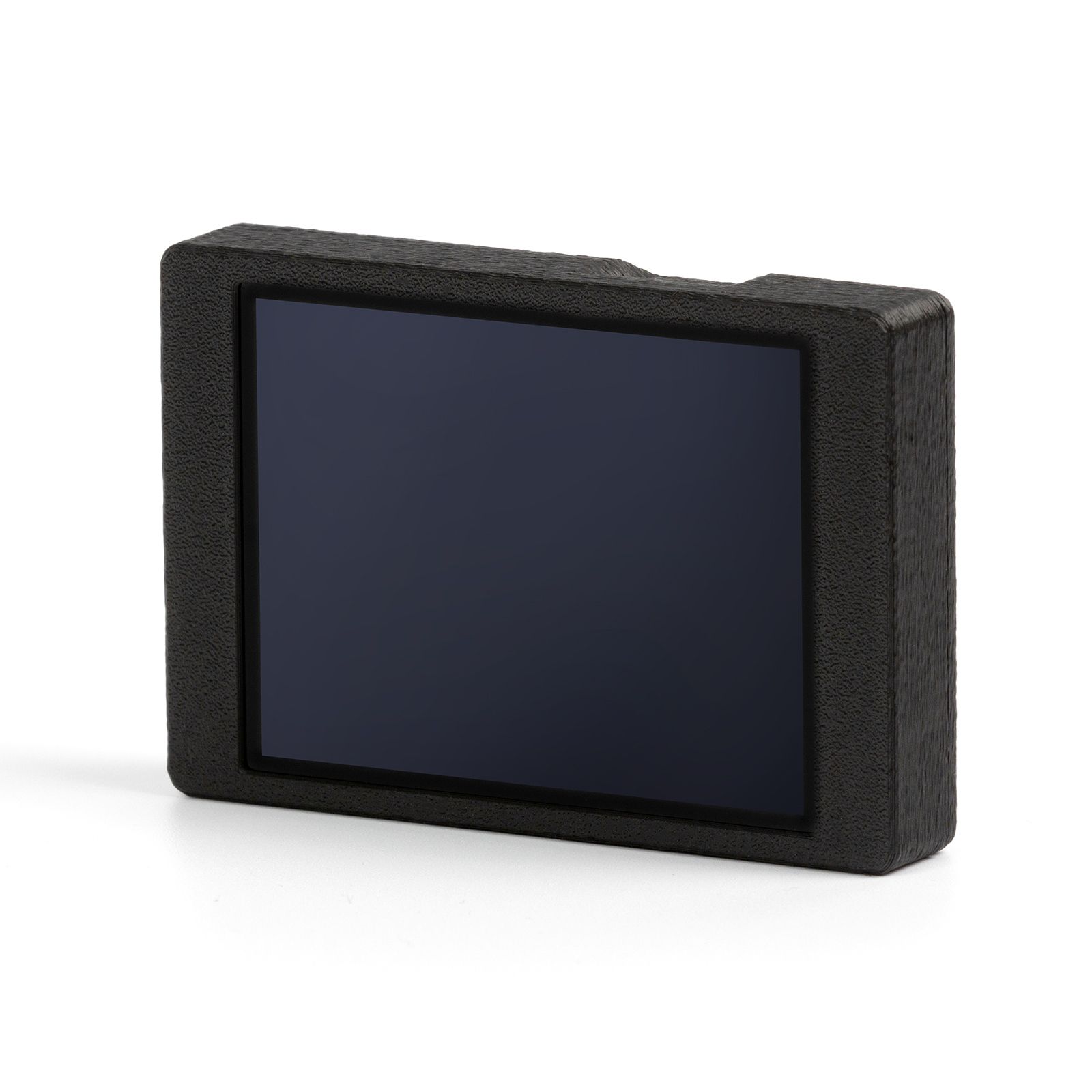

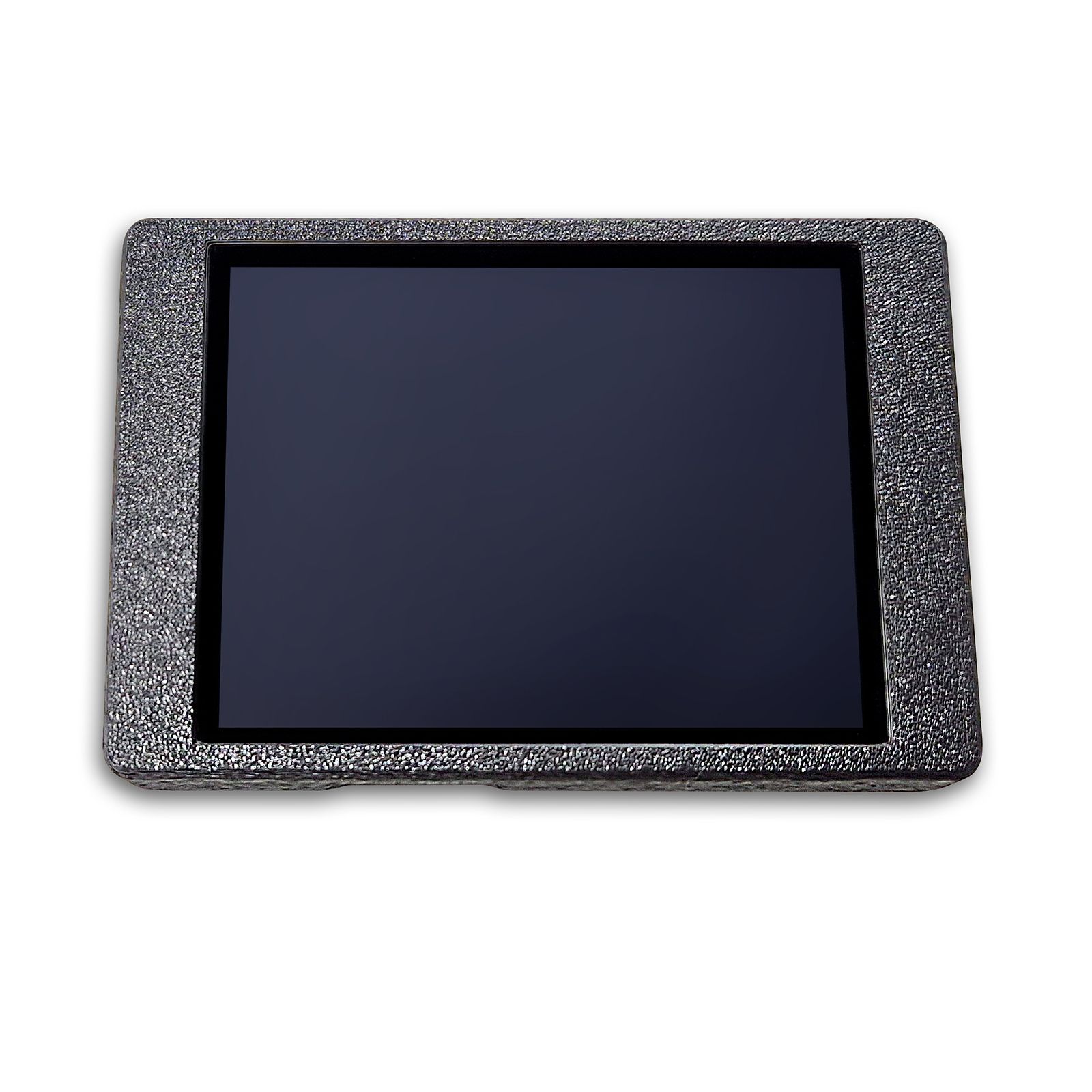

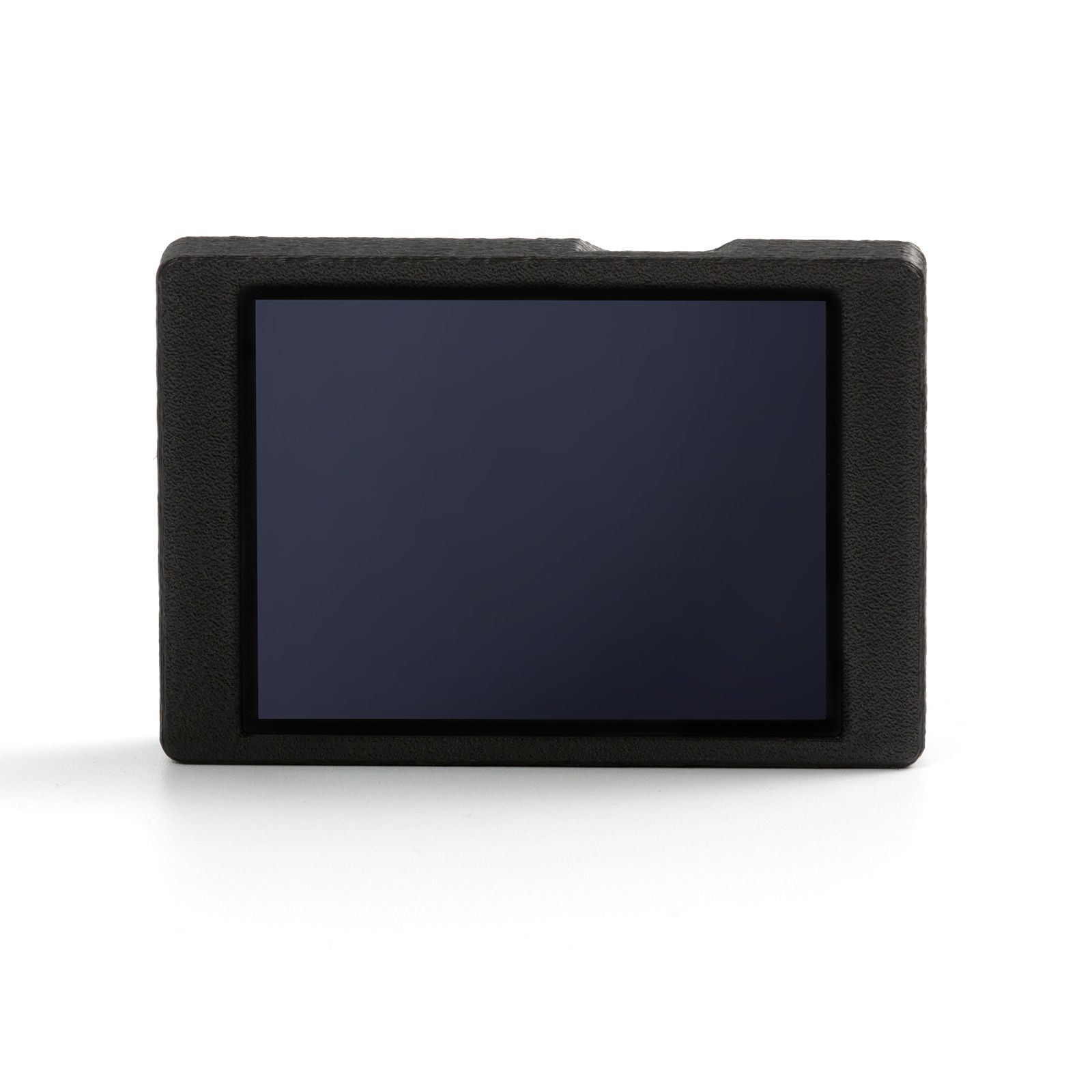

The MFD32 Gen2 in the universal version fits in every vehicle and is an intelligent display with features you won’t want to do without. The lightweight plastic housing impresses with its symmetrical appearance and can be used both vertically and horizontally.
Key Features
Compact size: The external dimensions are 89.5 x 60.5 mm and the depth is 19.5 mm (without connector)
Can Bus: Readout of in-depth vehicle data such as manufacturer diagnostic tools
Gear display: Directly via Can Bus or calculated from speed and rpm
Touchscreen: Navigate through pages using intuitive swipe gestures
Customization: Design your own pages, add your own pictures or start animation
Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display
Can Switching: Use your display as a keypad and send your own can messages to the bus
Customizable Alarms: Customizable alarms can be easily configured and activated. For example, get a big warning message when the exhaust gas temperature is above 900 degrees
Logging: Log and save your data to the internal SD card for later analysis.
Performance Meter: Measure your 0-100, 100-200 and 0-200 times with the integrated performance meter without any additional hardware.
DTC*: Read and clear the errors of engine control unit, transmission, ABS and all-wheel drive
Dimming*: Your display automatically dims along with the instrument panel

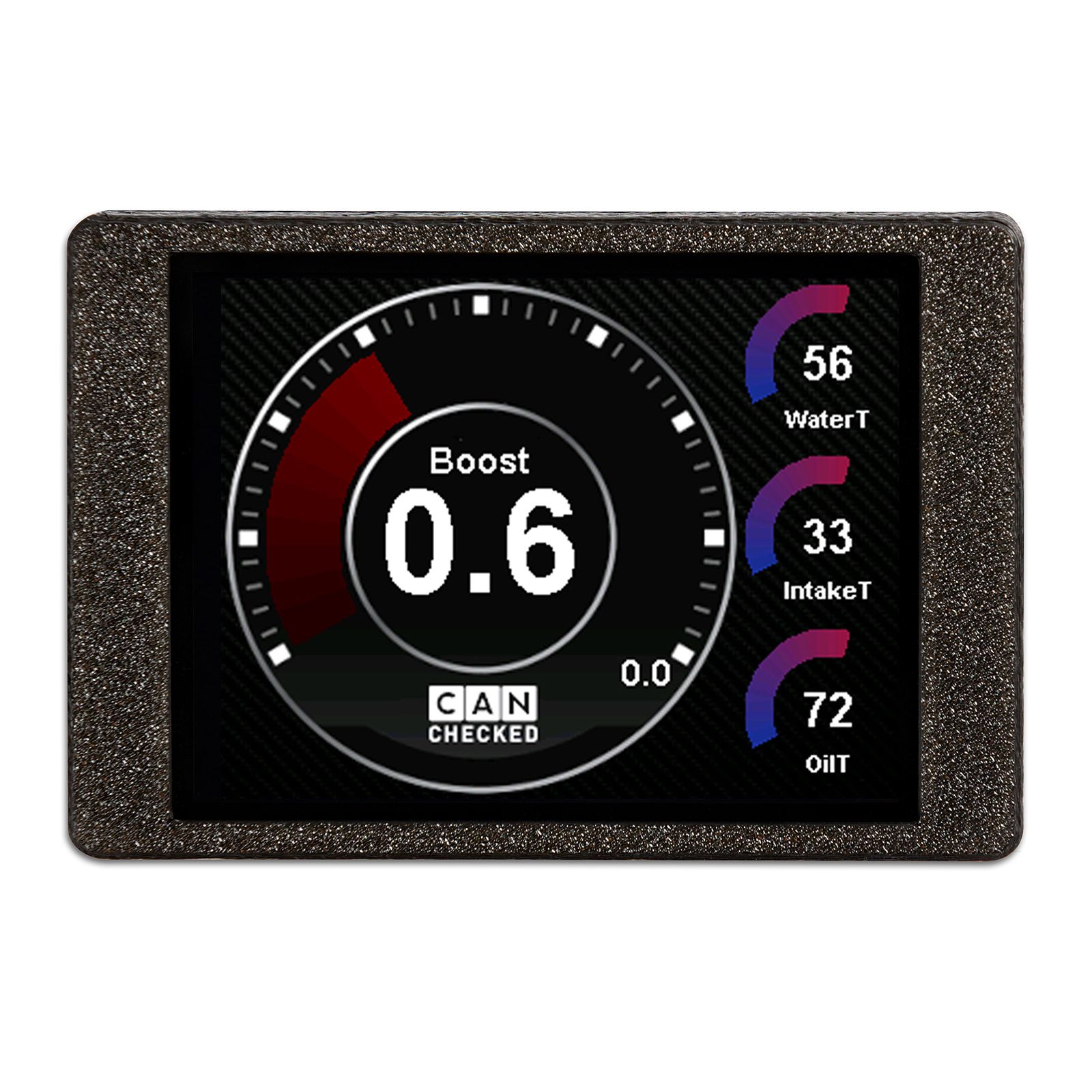

Different views
Configure your own page or choose from several predefined views:
The display is delivered with predefined sample pages
Creation of own pages possible and wished
Up to ten pages possible
20 different widget types (e.g. sensor value, analogue pointer, YT diagram, speed bar, round display, vertical/horizontal bar)
Widgets can be scaled in size and positioned using drag and drop
Colours of the widgets fully adjustable
Up to 64 widgets per page
Display Setup Software — DSS
With the CANchecked DSS you can fully customize your display. With the integrated log viewer you can download and view log files. Furthermore, a Can-Logger is integrated. The heart is the integrated «TRI Editor» with which you can adjust the sensors (no matter if Can Bus or internal): Assign min-/max-values for warnings and change the names of your sensors.
Supported values
Many customers always ask: «Which values can I get from my ECU». The answer: «ALL».
We have reverse-engineered the data for most engines here and can offer in-depth data. Our display supports Can Bus data query (UDS, TP2, manufacturer specific protocols) .
By default, your display is delivered with predefined TRI/TRX files. In the files, all sensors are defined, which are queried. These are different from engine to engine. Here is an extract of what is possible:
Temperatures:
Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, gasoline temperature, DSG-temperature.
Pressures:
Boost pressure, ambient pressure, fuel pressure pre-feed pump, rail pressure actual/target.
Lambda/mixture
Lambda value, injection time, short term lambda adjustment, long term lambda adjustment
Other
RPM, air mass, vehicle speed, throttle angle, total ignition angle, ignition angle retraction per cylinder, N75 timing in %, terminal 30 voltage, torque, gear, diesel specific values
If values are missing, they can be added later.
Of course, your new data display supports a wide range of freely programmable control units such as
DTA Fast
Ecumaster
Emerald
Emtron
Haltech
Hondata
KMS van Kronenburg
LinkECU
MaxxECU
MBE
Megasquirt
Motec
Motorsport Electronics
Syvecs
Trijekt
VEMS
Scope of delivery

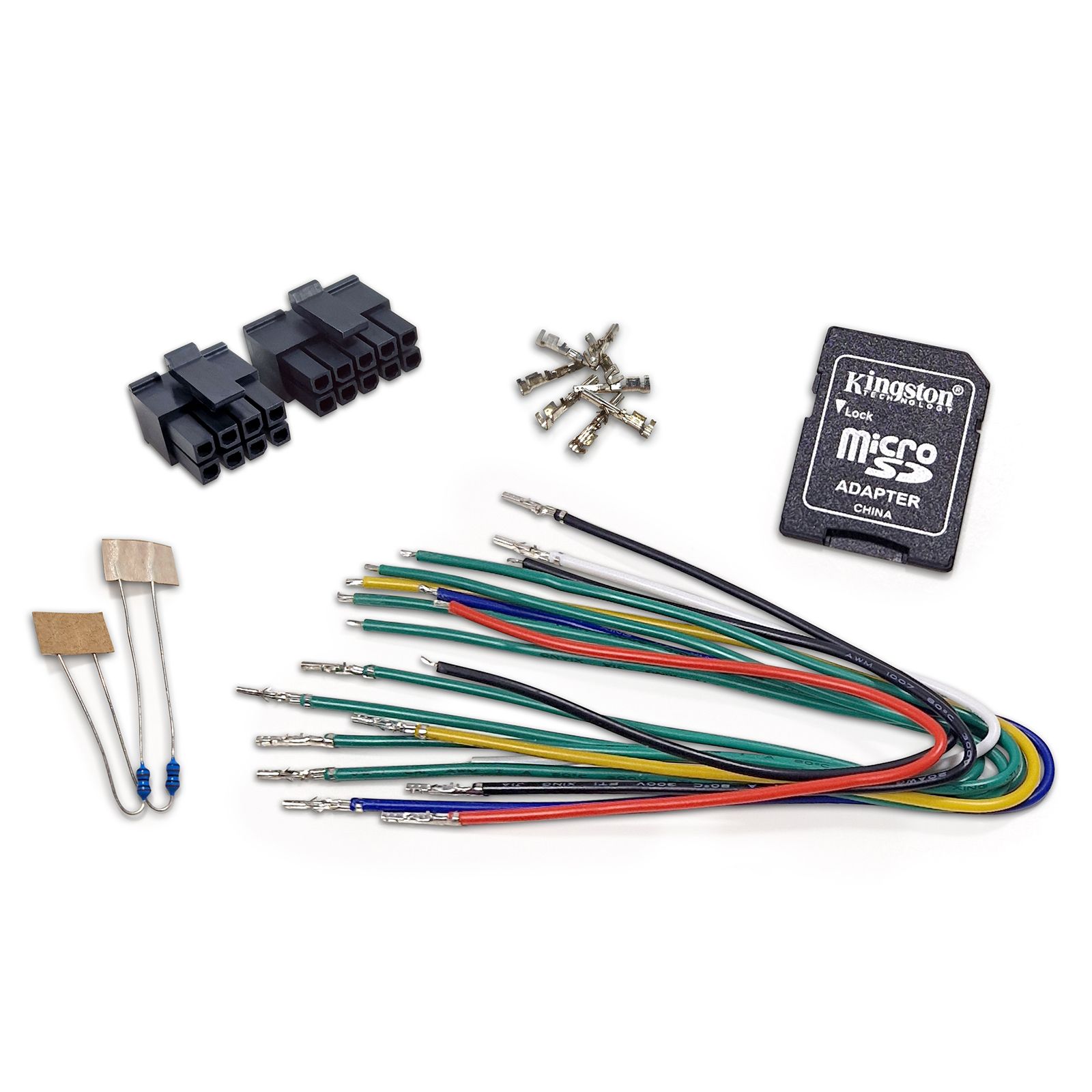

Included with every delivery is:
MFD32 Gen2 data display with lightweight plastic housing

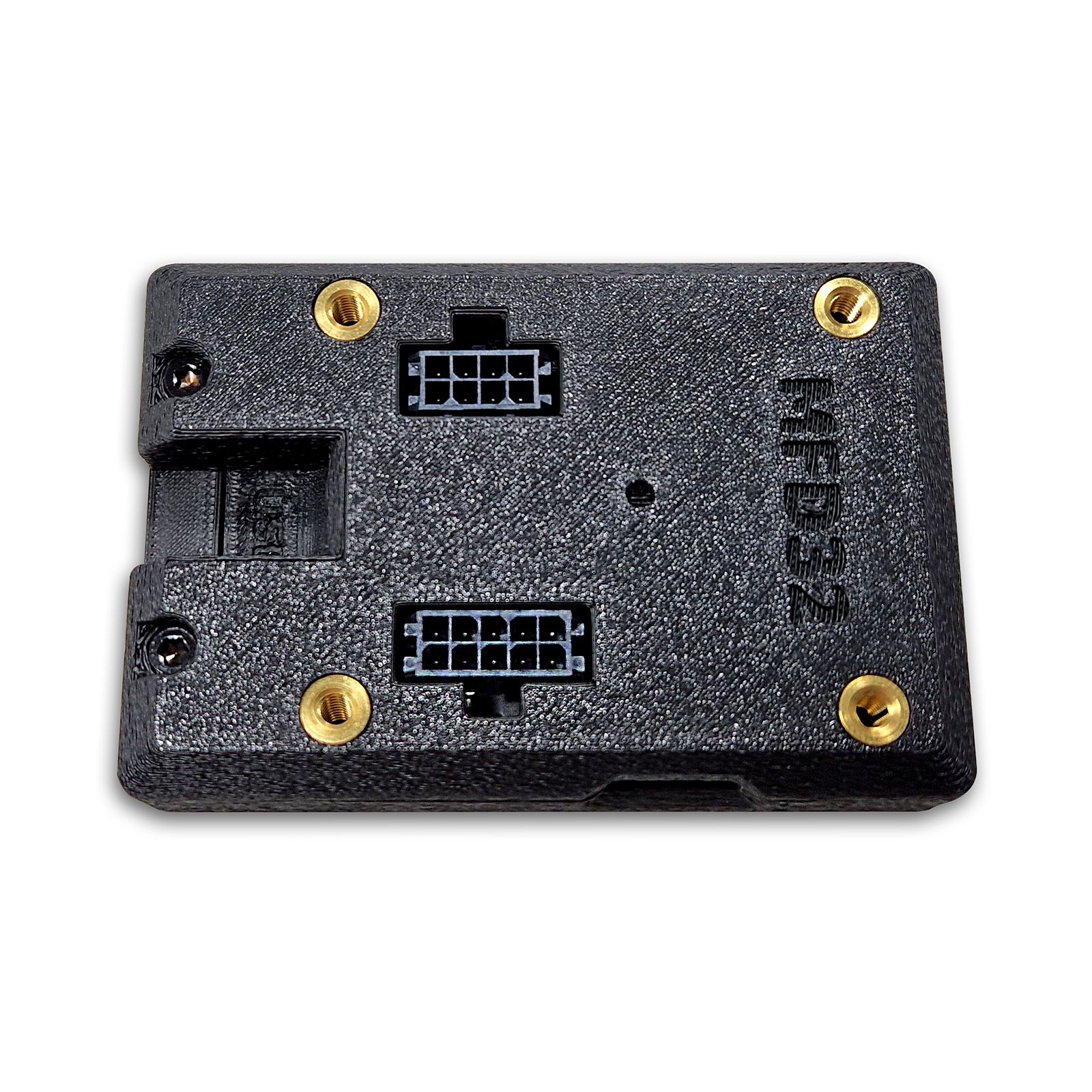

Connector A (8-way Molex)
Connector B (10-way Molex)
Different coloured pre-assembled connection cables (length: 20 cm, intended use: power supply, Can Bus, analogue inputs, 5V, sensor ground)
Pins for crimping yourself
Two 1K resistors (as pull-up for connecting external NTC sensors)
Quickstart Guide
USB data cable
SD card (pre-installed in the display)
SD card adapter
Display film (to prevent reflections)
Connection and extension
Any sensors can be connected via the four analog inputs — we support linear 0-5V as well as NTC sensors.
Our in-house CANchecked sensors are stored in the TRI-/TRX-files by default and only need to be connected:
AIN1: Temperature sensor (NTC01)
AIN2: Transducer for exhaust gas temperature sensor type K (TCC01)
AIN3: Pressure sensor 0-10 Bar (FLP01)
AIN4: boost pressure sensor 0-5,5 Bar absolute (BST10)
For the connection you can use our pre-assembled AIN wiring harness.
Beside the analog sensors you can also connect our external shift light with eight LEDs. This can flash in different colors and the speed limits and colors can be configured directly on the display.
You connect the ethanol sensor directly to the display. You need a pullup resistor (10K) between 5V and the signal. Then you can view and log the ethanol content and temperature directly on the display.
Advanced functions
With the Math-Channels you can calculate sensors with each other. The User-Table gives you the possibility to generate further sensors with 2D or 3D maps.
Optional accessories
CC10001 GPA32 — 52mm Gauge pod adaptor MFD32(S)
CC24000 SLM08 — external switching lightning module
CC22780 ANC04 — four-way AIN-harness
CC22100 CBD08 — eight-way Can Distribution Hub
CC22902 NTC01 — temperature sensor for liquids 1/8″ NPT
CC22903 TCC01 — type K converter 0-1250°C
CC22901 FLP01 — Pressure sensor 0-10 Bar (145psi) M10x1
CC22900 BST10 — Pressure sensor 6,5 Bar relativ (95psi)
*not available on all protocols
